Holy Rail Kit - 700mm
R 399.00
  • Modular Design

  • Free shipping on orders over R900

  • 1 Year Warranty

  • Guaranteed safe checkout with Payfast

The Holy Rail is a modular mounting system that enables flexibility of mounting accessories to your bicycle.



Simply attach the rail to your bottle cage mounts on either your down tube or seat tube and get creative with repositioning and mounting accessories and spares to your frame. The system uses standard M5 x 0.8 bolts meaning existing bottle cage accessories are compatible with the system.

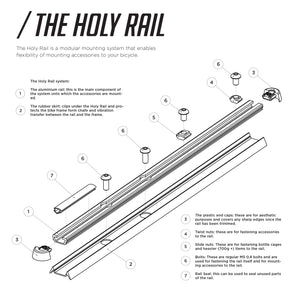

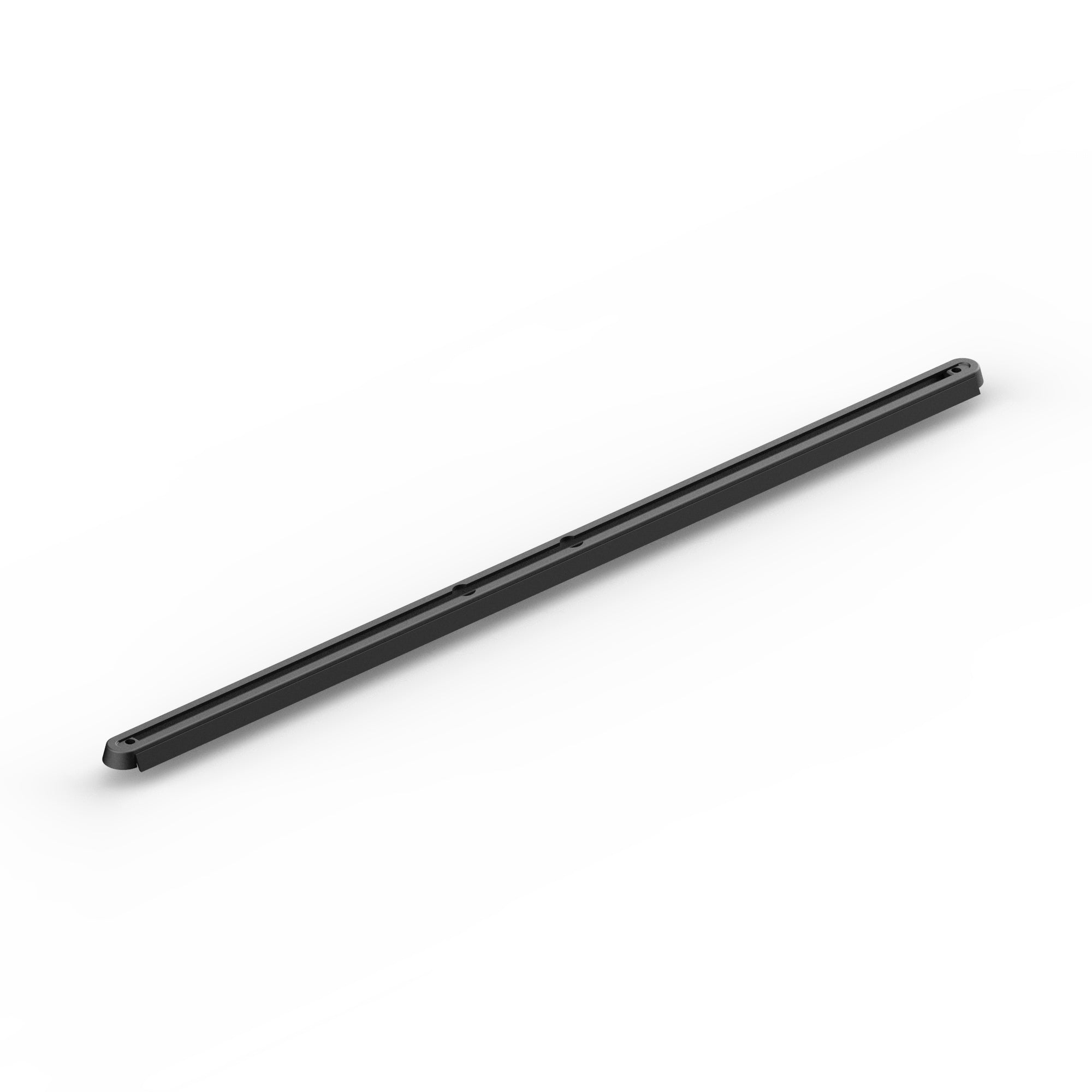

The Holy Rail is made up of a few key components. The rail itself is 6061 alloy and uses steel mounting nuts to fasten down your accessories. Below the rail uses a rubber skirt which acts as a protective layer for your frame as well a seal to avoid dirt from getting under the frame. End caps are included to cover the rail-ends, these are also used to cover any rough edges from cutting the rail down.



The rail kit includes various length bolts and also includes slide nuts and twist nuts for mounting. 500mm and 700mm rails are designed to be cut down. Longer rails may require aditional rail mountain frame straps if heavier items are mounted very high up the rail.



No bottle cage bolts? No problem, we have rail mounting straps which allow you to mount the Holy Rail on to any frame tube.

Check out our Holy Rail archive, we are documenting successful Holy Rail setups for reference purposes.

  • Features
  • Videos
  • Technical Documents

HOLY RAIL FEATURES


The main idea behind the Holy Rail is to reduce the amount of spares carried on the rider’s body and rather mount them to your bike frame. This allows you to ride free of a backpack and saddle-bag.

MOUNTS TO ANY FRAME


The Holy Rail is a modular mounting system that enables flexibility of mounting accessories to your bicycle. Simply attach the rail to your bottle cage mounts on either your down tube or seat tube, rail straps are available separately should your frame not have bottle cage bosses. It includes an integrated rubber skirt to protect your frame from chafe.

REPOSITION YOUR BOTTLE


The Holy Rail allows you to reposition your bottle, this can allow for more effective use of space within frame and allows space to be made for mounting accessories.

ADD STORAGE AND HYDRATION


We offer a range of different storage and hydration solutions to mount to the Holy Rail. The space available in your frame will determine which accessories you can fit.

M5 MOUNTING STANDARD


The rail uses standard M5 x 0.8 bolts meaning existing bottle cage accessories are compatible with the system, this allows you to add your favourite pump bracket or bottle cage for example.

OWNERS MANUAL

Click to view/download the drawing.
