R 349.00

The Holy Rail is a modular mounting system that enables flexibility of mounting accessories to your bicycle.



Simply attach the rail to your bottle cage mounts on either your down tube or seat tube and get creative with repositioning and mounting accessories and spares to your frame. The system uses standard M5 x 0.8 bolts meaning existing bottle cage accessories are compatible with the system.

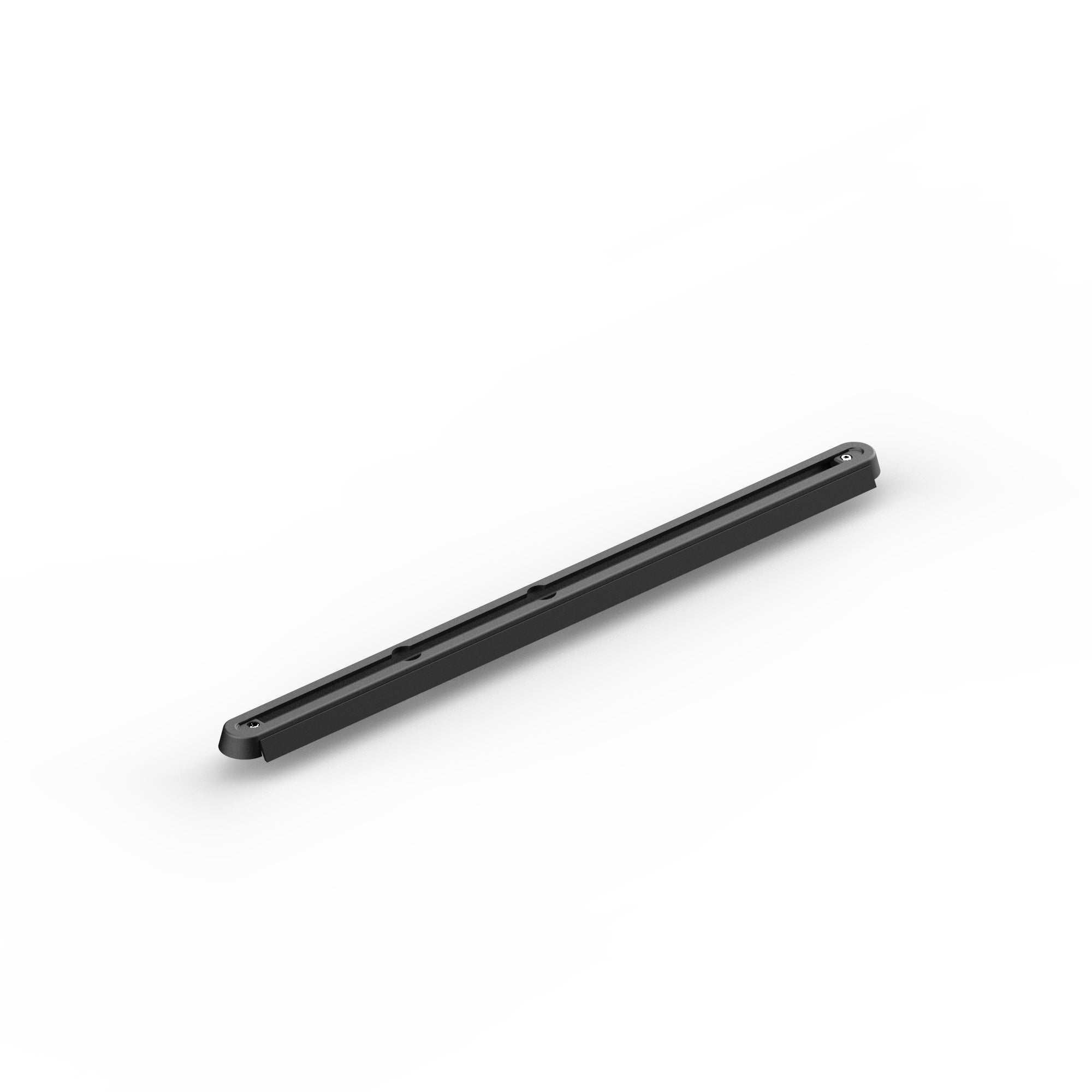

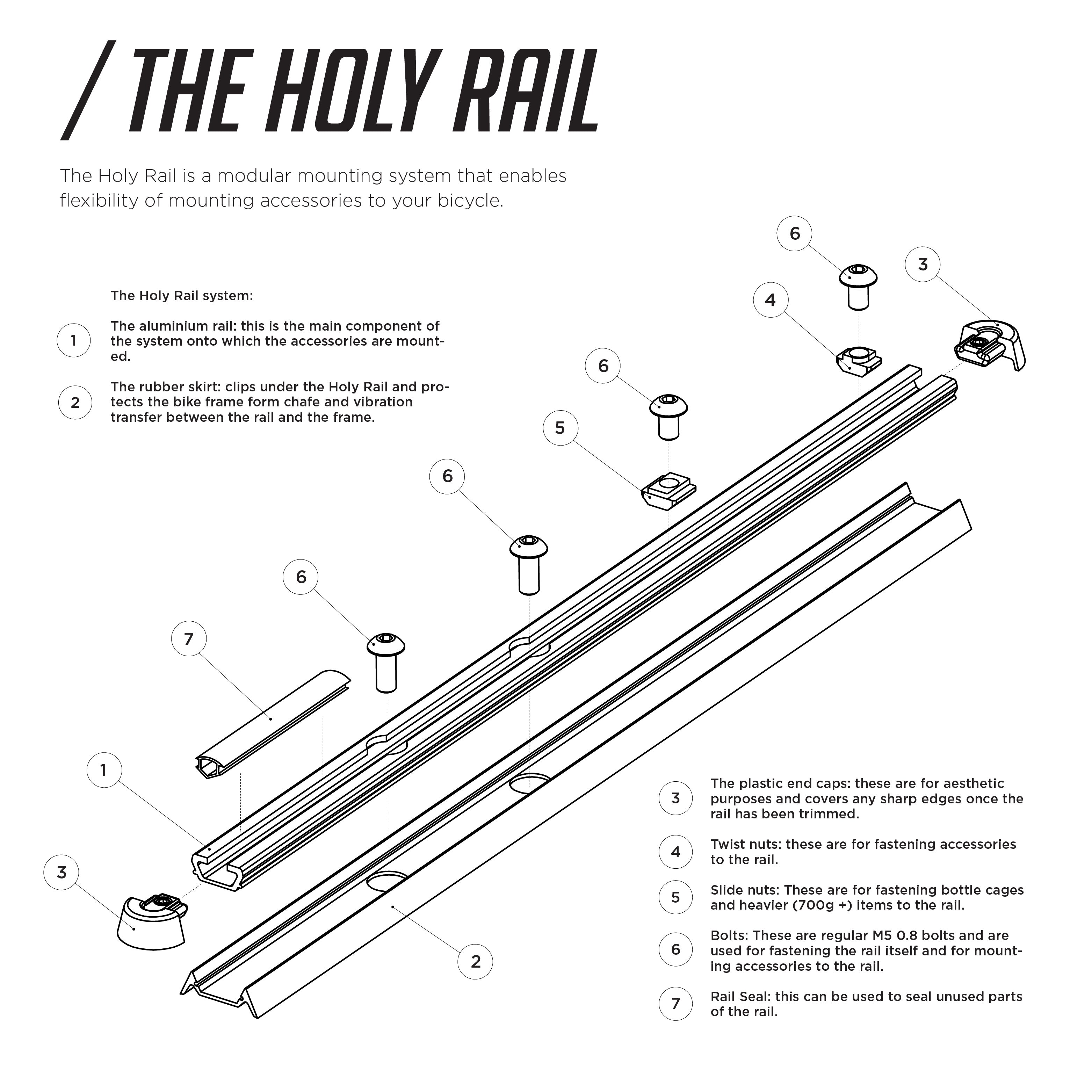

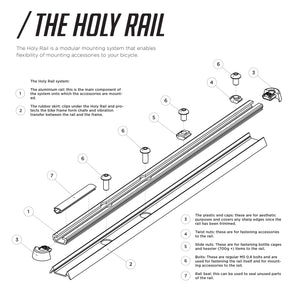

The Holy Rail is made up of a few key components. The rail itself is 6061 alloy and uses steel mounting nuts to fasten down your accessories. Below the rail uses a rubber skirt which acts as a protective layer for your frame as well a seal to avoid dirt from getting under the frame. End caps are included to cover the rail-ends, these are also used to cover any rough edges from cutting the rail down.



The rail kit includes various length bolts and also includes slide nuts and twist nuts for mounting.



No bottle cage bolts? No problem, we have rail mounting straps which allow you to mount the Holy Rail on to any tube.



Check out our Holy Rail archive, we are documenting successful Holy Rail setups for reference purposes.

MOUNTS TO ANY FRAME

The Holy Rail is a modular mounting system that enables flexibility of mounting accessories to your bicycle. Simply attach the rail to your bottle cage mounts on either your down tube or seat tube, rail straps are available separately should your frame not have bottle cage bosses. It includes an integrated rubber skirt to protect your frame from chafe.

REPOSITION YOUR BOTTLE

The Holy Rail allows you to reposition your bottle, this can allow for more effective use of space within frame and allows space to be made for mounting accessories.

ADD STORAGE AND HYDRATION

We offer a range of different storage and hydration solutions to mount to the Holy Rail. The space available in your frame will determine which accessories you can fit.

M5 MOUNTING STANDARD

The rail uses standard M5 x 0.8 bolts meaning existing bottle cage accessories are compatible with the system, this allows you to add your favourite pump bracket or bottle cage for example.

VIDEOS

TECHNICAL DOCUMENTS

OWNERS MANUAL & INSTALLATION INSTRUCTIONS

Click the button below to view the document.
